Compact diaphragm pump with a unique design that allows the fluid to flow through the centre block, while compressed air acts on the outside of the diaphragms.

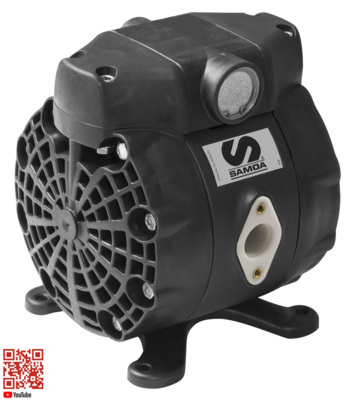

Diaphragm pump 1/2" Directflo PP-PTFE-PTFE

In stock

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Download picture Download PDF

Technical data

Part No
DF50PPYTWTTBAS
Ratio
1:1
Capacity
50 l/min free flow
Air connection
3/8" (F) BSP
Maximum air pressure
0,8 (8) MPa (bar)
Inlet
1/2" (F) BSP
Outlet
1/2" (F) BSP
Seals
PTFE / Teflon®
Max suction height
8 m
Max particle size
3 (0,12) mm (inch)
Material pump body
Polypropylene
Material diaphragm
PTFE / Teflon®
Material balls
PTFE / Teflon®
Material push rod
Hastelloy C®
H.S. Code
84138100
