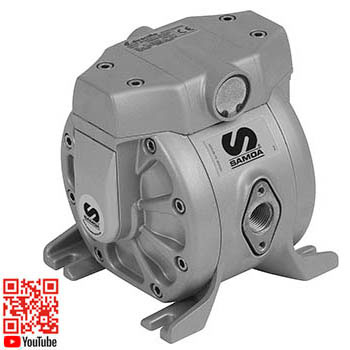

Diaphragm pump 1/2" Directflo Acetal-PTFE-PTFE

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

DF50PDSTSTTBAS

Ratio

1:1

Capacity

50 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1/2" (F) BSP

Outlet

1/2" (F) BSP

Seals

PTFE / Teflon®

Max suction height

8 m

Max particle size

3 (3/32) mm (inch)

Material pump body

Conductive acetal

Material diaphragm

PTFE / Teflon®

Material balls

PTFE / Teflon®

Material ball valve seats

Stainless steel (AISI 316)

Material push rod

Stainless steel (AISI 420)

Weight (Gross)

3,38 kg

H.S. Code

84138100

Downloads

• Katalog DirectFlo® (EN)
