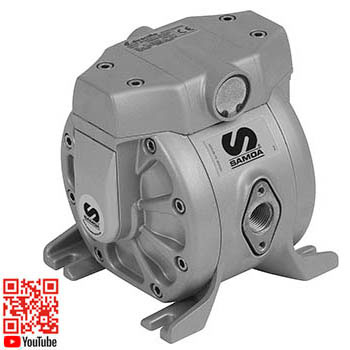

Diaphragm pump 1/2" Directflo ALU-PTFE-PTFE

Order item Estimated delivery time is 1 week(s)

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Download picture Download PDF

Technical data

Part No
DF50AASTSTTNAS
Ratio
1:1
Capacity
50 l/min free flow
Air connection
3/8" (F) NPT
Maximum air pressure
0,8 (8) MPa (bar)
Inlet
1/2" (F) NPT
Outlet
1/2" (F) NPT
Max suction height
8 m
Material pump body
Aluminium
Material diaphragm
PTFE / Teflon®
Material balls
PTFE / Teflon®
Material ball valve seats
Stainless steel (AISI 316)
H.S. Code
84138100
