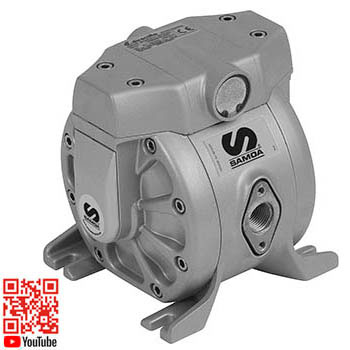

Diaphragm pump 1/2" Directflo Aluminium-Buna-N-Buna-N

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

DF50AASNSNNBAS

Ratio

1:1

Capacity

50 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1/2" (F) BSP

Outlet

1/2" (F) BSP

Seals

NBR / Buna-N

Max suction height

8 m

Max particle size

3 (3/32) mm (inch)

Material pump body

Aluminium

Material diaphragm

NBR / Buna-N

Material balls

NBR / Buna-N

Material ball valve seats

Polypropylene

Material push rod

Stainless steel (AISI 420)

Certification

Ex II2 GD IIB/IIC 95 ˚C

Weight (Gross)

4,15 kg

H.S. Code

84138100

Downloads

• Katalog DirectFlo® (EN)
