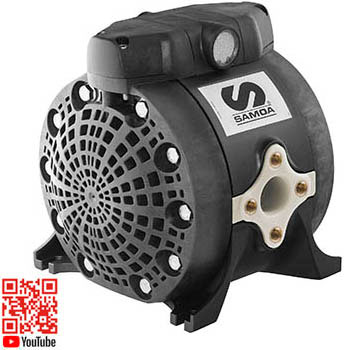

Diaphragm pump 1" Directflo PP-Santreprene-PTFE

According to following spec

Technical data

Part No

DF100PPSESTMBAS

Ratio

1:1

Capacity

100 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1" (F) BSP

Outlet

1" (F) BSP

Seals

EPDM

Max suction height

7 m

Max particle size

4 (0,16) mm (inch)

Material pump body

Polypropylene

Material diaphragm

Santoprene®

Material balls

PTFE / Teflon®

Material ball valve seats

Stainless steel (AISI 316)

Material push rod

Stainless steel (AISI 420)

H.S. Code

84138100
