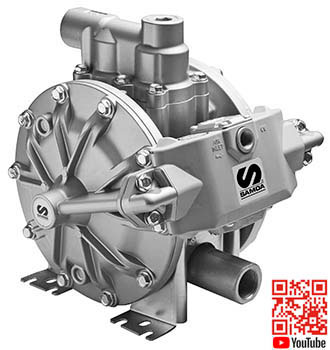

Diaphragm pump 1" Directflo Aluminium-Santoprene-PTFE

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

DP200AASEMTMBAS

Ratio

1:1

Capacity

200 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1" (F) BSP

Outlet

1" (F) BSP

Seals

EPDM

Max suction height

8 m

Max particle size

6 (1/4) mm (inch)

Material pump body

Aluminium

Material diaphragm

Santoprene®

Material balls

PTFE / Teflon®

Material ball valve seats

Santoprene®

Certification

Ex II2 GD IIB/IIC 95 ˚C

Weight (Gross)

12,83 kg

H.S. Code

84138100

Downloads

• Katalog DirectFlo® (EN)
