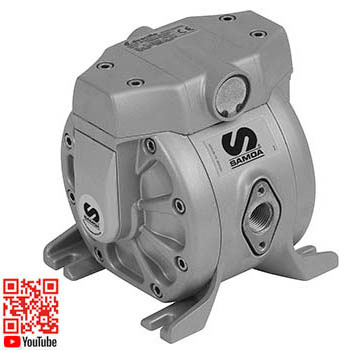

Diaphragm pump 1/2" Directflo SS-PTFE-SS

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

DF50ASSTSSTBAS

Ratio

1:1

Capacity

50 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1/2" (F) BSP

Outlet

1/2" (F) BSP

Max suction height

8 m

Material pump body

Stainless steel (AISI 316)

Material diaphragm

PTFE / Teflon®

Material balls

Stainless steel (AISI 316)

Material ball valve seats

Stainless steel (AISI 316)

Certification

Ex II2 GD IIB/IIC 95 ˚C

H.S. Code

84138100
