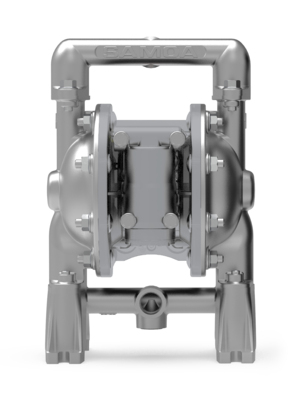

Diaphragm pump 1/2" SST-Santoprene-Santoprene ATEX

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

UP05A-BSS-SMA

Ratio

1:1

Capacity

54 l/min free flow

Air connection

1/4" (F) NPSM

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

1/2" (F) BSP

Outlet

1/2" (F) BSP

Seals

EPDM

Max suction height

8 m

Max particle size

2,5 (3/32") mm (inch)

Material pump body

Stainless steel

Material diaphragm

Santoprene®

Material balls

Santoprene®

Material ball valve seats

Stainless steel (AISI 316)

Weight (Gross)

4,6 kg

H.S. Code

84138100
