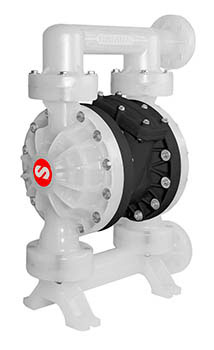

Diaphragm pump 2" PP-Santoprene-Santoprene

SAMOA diaphragm pump - compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s

Technical data

Part No

UP20B-FPS-PMA

Ratio

1:1

Capacity

650 l/min free flow

Air connection

3/4" (F) NPT

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

2" (F) BSP

Outlet

2" (F) BSP

Seals

Polypropylene

Max suction height

8 m

Max particle size

6,4 (1/4) mm (inch)

Material pump body

Polypropylene

Material diaphragm

Santoprene®

Material balls

Santoprene®

Material ball valve seats

Polypropylene

Material push rod

Stainless steel (AISI 316)

Weight (Gross)

46,7 kg

H.S. Code

84138100
